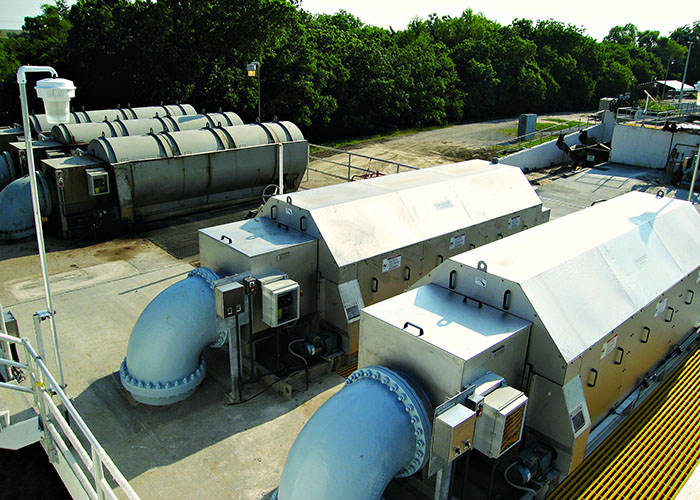

The Rotoshear® is often utilized as a headworks screen and is a proven, high-capacity fine screening technology. It is frequently used for pretreatment and primary treatment to replace primary clarifiers, as well as sludge screening. EZ-Care™ features include quick disconnect nozzles for spray wash and entirely lube-free drive system and trunnion wheels.
Introduced over 30 years ago, the Rotostrainer® is the original self-cleaning and externallyfed wedgewire screen. It offers an oversized headbox with sufficient weir length to allow for 100% bypass in overflow situations. The screen features a heavy-duty, corrosion resistant stainless steel chassis and wedgewire screening cylinder. The Rotostrainer handles difficult solids, such as scum and oily and greasy materials, extremely well.
The Rotoshear® Perforated Plate Drum Screen offers diverse media options to meet various screening needs. Its superior capture efficiency makes it the ideal choice for pre-membrane screening. The screens are outfitted with EZ-Care™ features, which reduce operator maintenance and affiliated costs.
The Aqua Caiman® represents the next generation of articulating rake screens. This low maintenance screen provides unmatched durability and ease of operation.

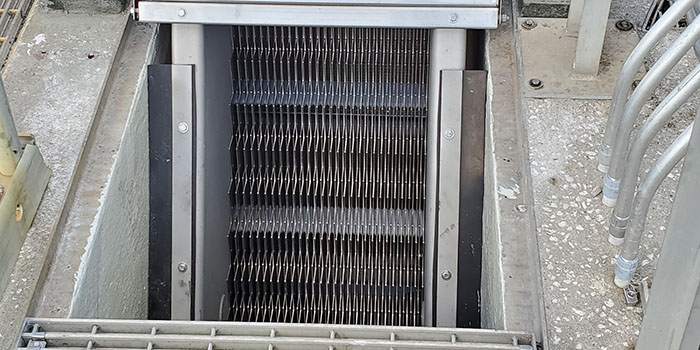

The Aqua Rhino™ represents the next generation of escalating screens. It is the most durable step screen on the market with a robust design and advanced drive systems.

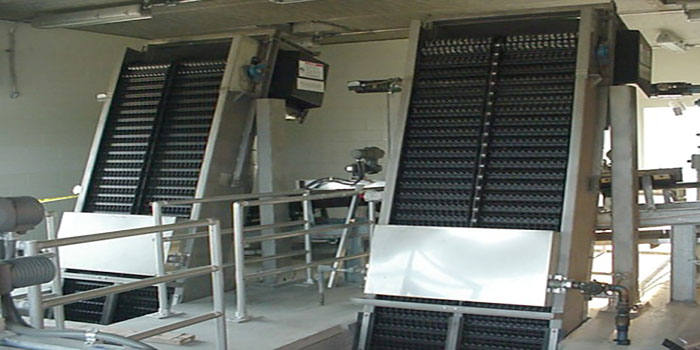

Introduced over 40 years ago, the Aqua Guard® is the original filter element screen. With 1000s of installations, it continues to be a proven design with high capture rates.

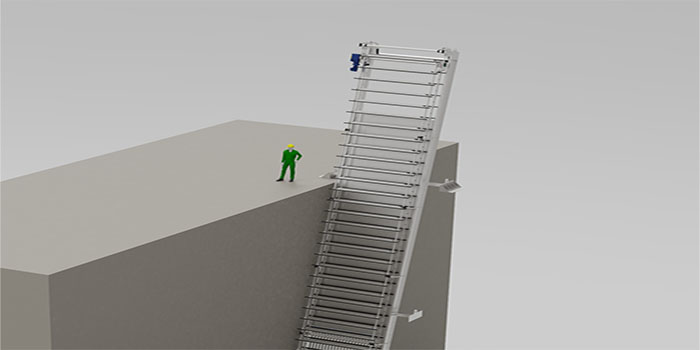

The Aqua Caiman® HD incorporates the proven features and benefits of the original Aqua Caiman®, but is even more robust, designed to handle high flows and heavy solids with ease. A series of rakes coupled to heavy traveling chains form a flexible belt assembly to remove solids without need for bottom bearings.

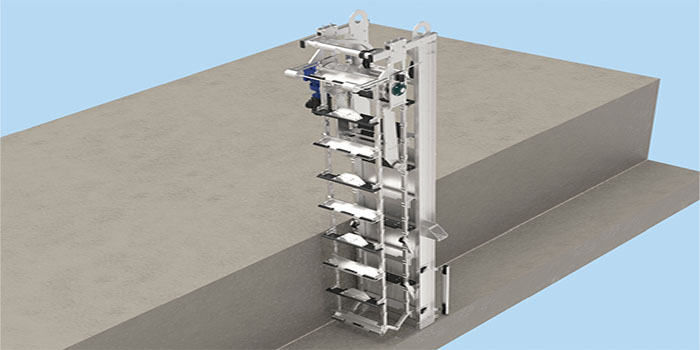

Building off the proven Aqua Caiman® design, the Aqua Caiman® Vertical mounts vertically at 85 or 90 degrees and can be used in new or existing deep channels.
The Hydroscreen offers proven and reliable performance in liquid/solid separation. It is used as both a fine screen for pretreatment and grit dewatering equipment in wastewater treatment plants.

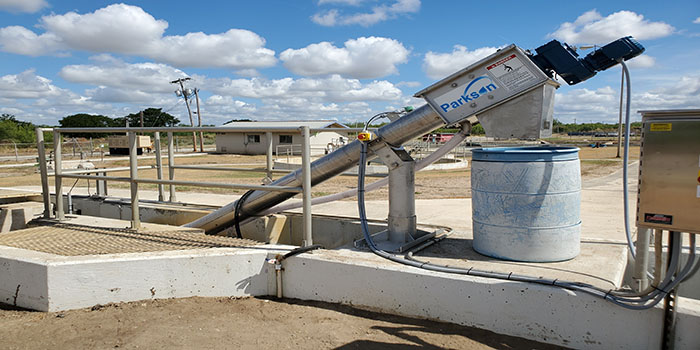

The Helisieve® M combines fine screening, conveying and dewatering to create a highly economical system that produces screenings dry enough without need for an additional dewatering press. The heart of the system is a shaftless spiral with brush in the screen basket area to keep the screen clean. Screened solids are conveyed out of the channel, dewatered and discharged into a dumpster/conveyor.
The Hycor® Combi® is an all-in-one headworks solution that integrates fine screening, screenings dewatering and grit handling in a single, pre-fabricated stainless steel unit. The system is designed for sewage or septage pretreatment at the wastewater treatment plant.

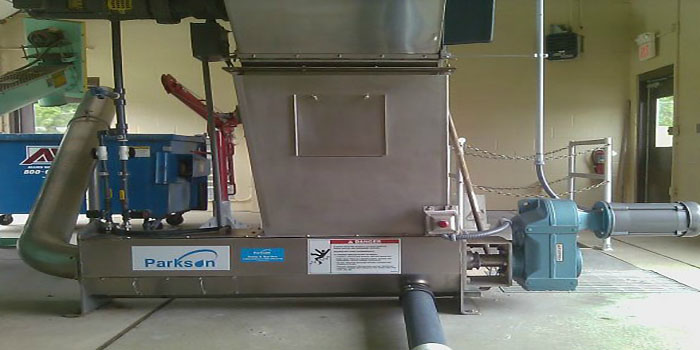

The Aqua WashPress® economically and effectively washes and dewaters screenings from in-channel and rotating screens in a variety of applications. A stainless steel housing encompasses an inner cylinder where washing, compacting and dewatering occur. Volume and weight are reduced prior to disposal.

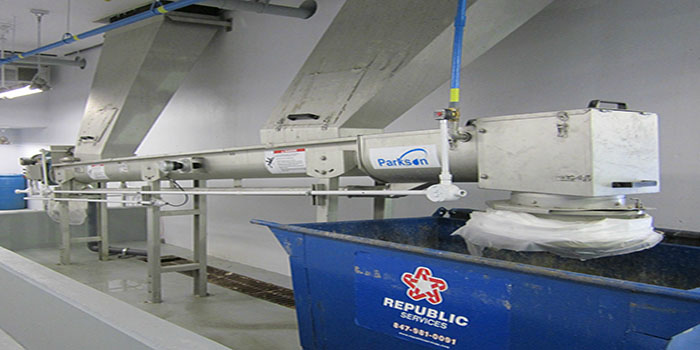

The Helixpress® is the cost-effective solution for dewatering screenings collected by any type of screen. It’s an all-in-one conveyor, compactor and dewaterer that reduces weight and volume, ultimately decreasing hauling and disposal costs.
Only available as a complement to Lamella® • Processed chamber design • Packaged, jointless membrane plates • Automatic, semi-automatic and manual plate exchangers • No moving parts during filtration • Stable wetted parts, polymeric materials • Minimal operator attention required • Long life with little maintenance • Wide variety of unit sizes and chamber depths
Used in conjunction with other Parkson™ equipment, Helicon® provides a solids management system that conveys screened solids to washing or dewatering and ultimately, to disposal.
The Biolac® System is a proven, long sludge age, activated sludge process that reliably provides complete nitrification in a very simple-to-build plant.

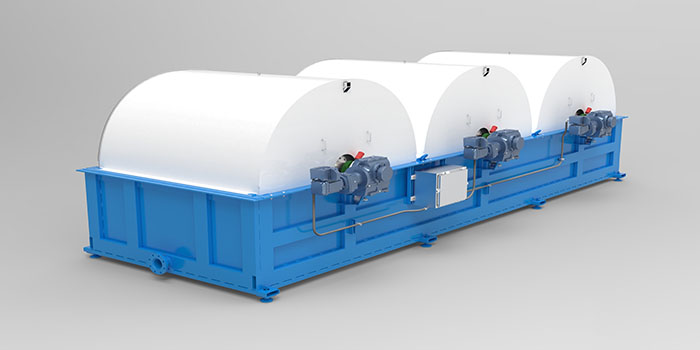

The TumbleOx™ Bioreactor utilizes an attached growth, non-activated sludge process to provide biological treatment of BOD and ammonia. Media housed in a partially submerged, rotating drum provides a large surface area for biofilm to grow. The unique media design provides aeration as the drum rotates and the media moves in and out of submergence.

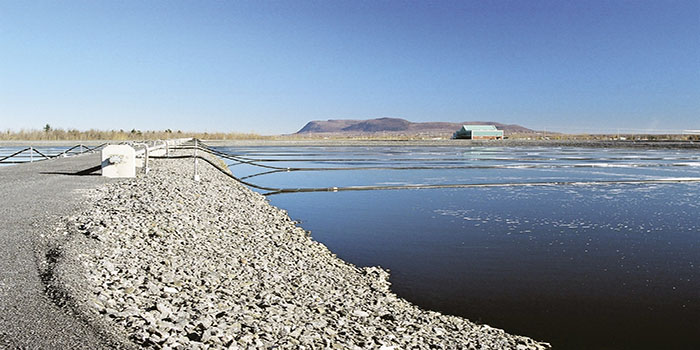

IGNITE™ is a non-activated sludge solution for upgrading lagoon based treatment plants to achieve improved BOD and ammonia removal. The process utilizes a combination of Parkson’s Biofuser® lagoon aeration system and TumbleOx™ Nitrification Reactor.

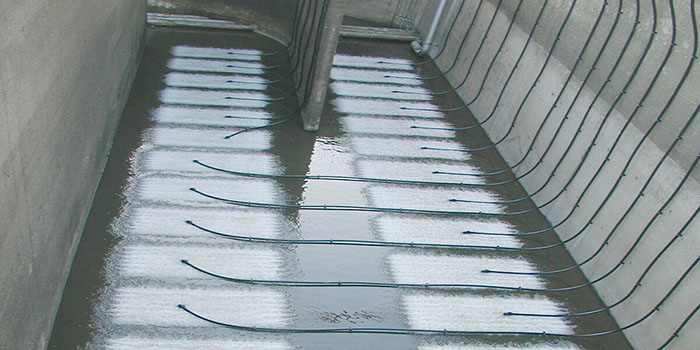

The HiOx® Messner® Aeration Panel provides a unique combination of very high oxygen transfer efficiency with materials of construction that consistently last much longer than conventional fine bubble diffusers.

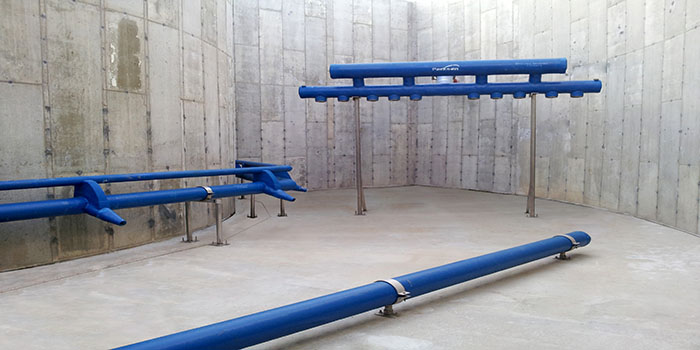

The EcoCycle SBR™ is a batch treatment process where all treatment steps occur within the same reactor. A typical system includes two or more treatment tanks so as one tank is filling, the other tank(s) are processing and clarifying. A normal treatment cycle will include fill, react, settle, decant, and idle steps.

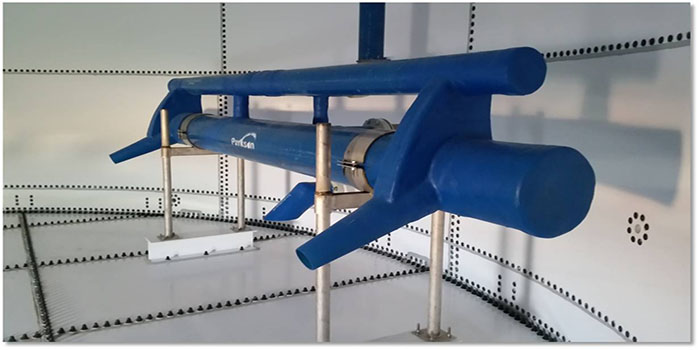

The VariOx™ Jet Aerator utilizes a combination of motive liquid and blower air to create a highenergy jet plume for mixing and oxygen transfer. The jets can be operated without the blowers or with variable blower input while still maintaining a complete mix condition within the tank. This feature enhances process control and energy optimization.

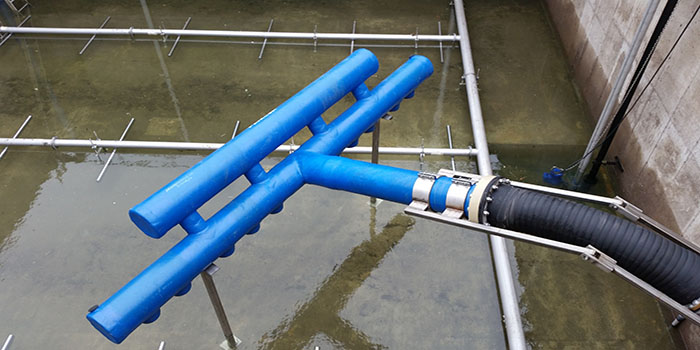

The DynaCanter™ is a floating style decanter that is used to remove treated effluent (Model ED) or supernatant (Model SD) from the upper portion of the treatment tank. The decanter utilizes a flex joint to allow vertical articulation as water levels change. Water is collected from below the surface to preclude floating material.
Continuous flow activated sludge system combining hydraulic flow equalization and multi-stage activated sludge treatment • Biological treatment with 24/7 equalization • Reduced footprint, capital cost and energy • Enhanced nutrient removal • Eliminates EQ basin odors • Maximizes biological nutrient removal.
Aeration, mixing and nitrate recycle in one system • High nitrate recycle rate up to 8Q+ of the ADF without additional power • Increases biological nitrogen removal efficiency • Nitrate and anoxic recycle systems • Reduces energy consumption and capital costs.
DynaSand® Denite provides a single-step solution to remove nitrates (NO3) and nitrites (NO2) in order to meet low effluent nutrient limits. The DynaSand filter achieves denitrification performance with less energy and in a smaller footprint than alternative conventional technologies. When combined with EcoWash®, significant operational cost savings associated with supplemental carbon are also realized.

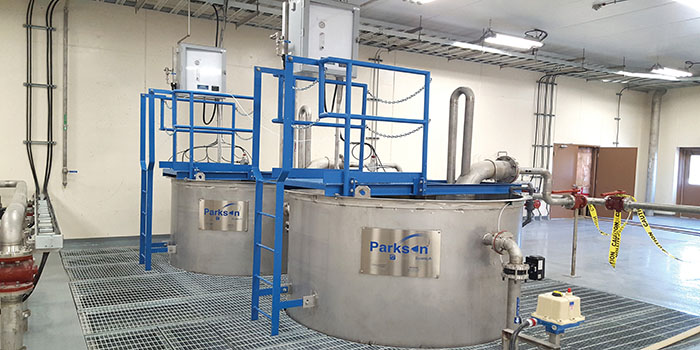

The DynaSand® EcoWash® filter delivers improved effluent quality over conventional filter systems while simultaneously lowering treatment chemical consumption, increasing net water production and saving energy.
The DynaSand D2® filter achieves enhanced effluent quality by providing a two-stage filtration system when targeting water quality, originally thought only possible via membrane filtration.

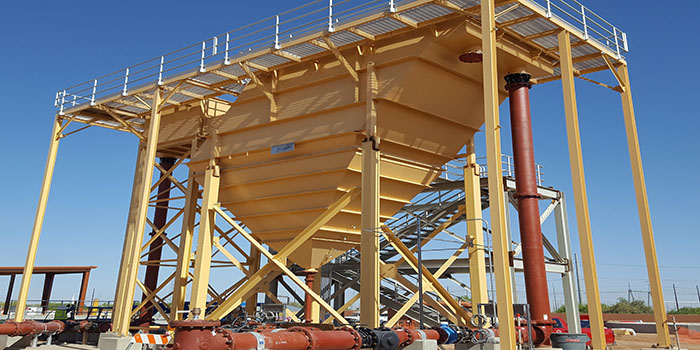

Parkson’s legacy Lamella® Gravity Settler (LGS), Lamella Gravity Settler Thickener (LGST) and Lamella Plate Pack designs are the most economical sedimentation options preferred by engineers and designers for the superior, high-capacity patented EcoFlow® design. Lamella enables municipalities to process 25% more throughput for the same footprint of traditional units.
Parkson’s efficient and proprietary flow distribution design guarantees our plate pack clarifiers operate with the lowest hydraulic mal-distribution in the industry. All plate pack units are sold with the patented Lamella EcoFlow® technology, allowing engineers to design at 100% of plate utilization.
The ThickTech™ Rotary Drum Thickener (RDT) is the industry leading sludge thickener. Its performance is unmatched, with sludge volume reduction of 90% and up to a 98% capture rate – all achieved with very low polymer use. Fabricated of stainless steel and utilizing a woven wire mesh screen, it is engineered to provide years of reliable service.

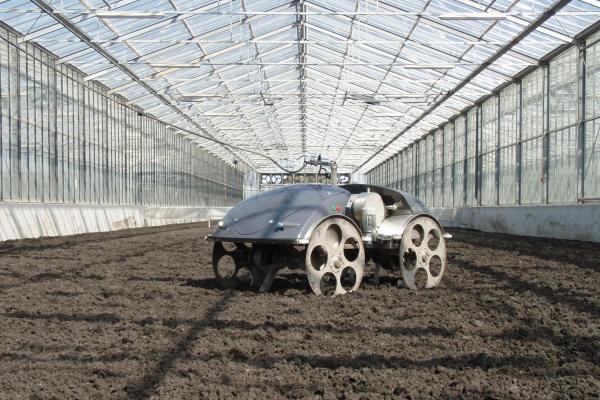

Solar energy is used to extract water from sewage sludge – a simple and cheap process that not only reduces the sludge considerably in terms of volume but also saves truck mileage and C02 emissions.
Coalescing plate pack design • Gravity separation • Removes free, non-emulsified oil • Settles out tramp solids • Carbon steel tank construction • Available in smaller flow FPR design • High throughput • Efficient separation • Coalescing separation processes twice the flow in 20% less volume.
Nitrification and denitrification are controlled in the SNDR by monitoring the pH, temperature, and ORP. Since nitrification is inhibited at temperatures above ~100° F, this reactor is operated just under this temperature, in order to fully optimize the growth rate of these specialized microorganisms. pH set points can be used to control the nitrification and denitrification process by creating an aerobic or anoxic condition as warranted. Because a reduction of total alkalinity accompanies nitrification, the pH of the system provides an ideal method of control.

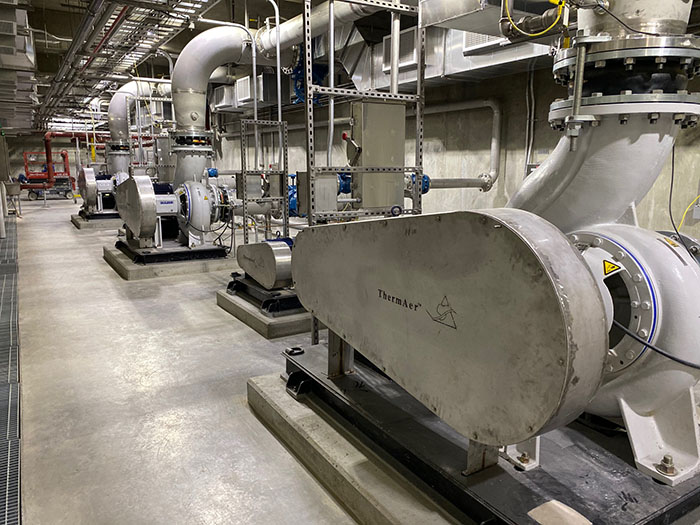

ThermAer destroys 60-70% of volatile solids and increases dewatering cakesolids as much as 25-30%. This process generates a high quality product reducing solids volume by up to 70%, while saving on your transportation and disposal costs.

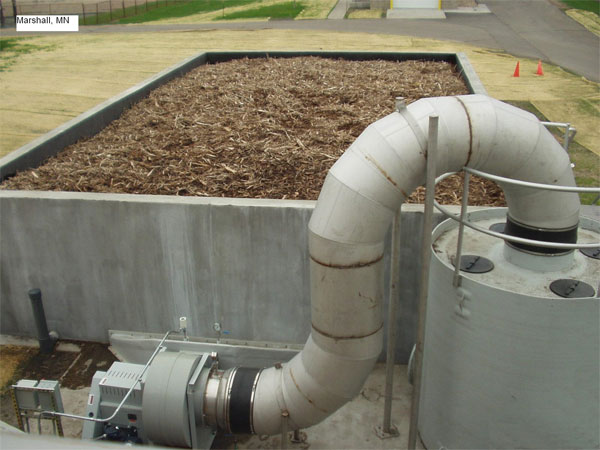

BiofiltAer allows naturally-occurring microorganisms grown in an environmentally controlled filter media bed to break down and eliminate malodorous compounds in an environmentally friendly process, with little if any affects from ambient temperature variations.
